ProjectBEA — AI VTuber Engine
ProjectBEA is a modular, fully autonomous AI VTuber engine. It powers a living AI persona — Bea — that can hold live conversations, monologue to her audience when idle, join Discord voice calls, play Minecraft autonomously, and remember past sessions via a built-in RAG memory system. All of this is orchestrated through a clean plugin-based architecture where every component is swappable.
Built for fun by a 19-year-old CS student learning Python. Open-source, self-hostable, and designed to be easily extended.
Features
| Feature | Description |
|---|---|
| Swappable LLMs | Gemini, OpenAI-compatible (GPT-4o, Groq, GLM-4.7) — switch at runtime |
| Multiple TTS engines | EdgeTTS (free), Kokoro (local ONNX), Orpheus (API) |
| OBS Integration | Avatar PNG/video swap, animated text bubble via WebSocket |
| RAG Memory | ChromaDB-powered diary system — Bea remembers past sessions |
| Discord Skill | Full voice call integration — listens, transcribes, responds live |
| Minecraft Skill | Autonomous LLM-driven agent that plays Minecraft via WebSocket |
| Monologue Skill | When idle, Bea automatically starts talking to her audience |
| Web Dashboard | React + FastAPI dashboard for chat, config, skill control, brain activity |
| Hot Reload | Change models, voices, or settings at runtime without restart |
| Plugin Skills | Every capability is a BaseSkill plugin — add your own in minutes |
Architecture Overview
┌─────────────────────────────────────────────────────────────────┐
│ AIVtuberBrain │
│ ┌──────────┐ ┌──────────┐ ┌──────────┐ ┌───────────────┐ │
│ │ LLM │ │ TTS │ │ STT │ │ OBS │ │
│ │ (pluggable)│ │ (pluggable)│ │ (Groq) │ │ (WebSocket) │ │
│ └──────────┘ └──────────┘ └──────────┘ └───────────────┘ │
│ ┌─────────────────────────────────────────────────────────┐ │
│ │ SkillManager │ │
│ │ ┌──────────┐ ┌──────────┐ ┌───────────┐ ┌─────────┐ │ │
│ │ │ Memory │ │ Discord │ │ Minecraft │ │Monologue│ │ │
│ │ │ (RAG) │ │ (Voice) │ │ (Agent) │ │ (Idle) │ │ │
│ │ └──────────┘ └──────────┘ └───────────┘ └─────────┘ │ │
│ └─────────────────────────────────────────────────────────┘ │
│ ┌──────────────────┐ ┌──────────────────────────────────┐ │
│ │ HistoryManager │ │ EventManager │ │
│ │ (sessions/JSON) │ │ (system, input, output, skill) │ │
│ └──────────────────┘ └──────────────────────────────────┘ │
└─────────────────────────────────────────────────────────────────┘
│
┌───────────────┴───────────────┐
│ FastAPI + React │
│ Web Dashboard │
└───────────────────────────────┘
Full Architecture Documentation →
Project Structure
ProjectBEA/
├── main.py # Entry point (CLI args + engine bootstrap)
├── config.json # Persistent runtime configuration
├── requirements.txt
├── data/
│ ├── conversations/ # Saved session JSON files
│ ├── memory_db/ # ChromaDB persistent storage
│ ├── pngs/ # Avatar images per mood (idle/talking)
│ └── prompts/ # System prompts (persona, monologue, minecraft)
├── docs/ # Full documentation (you are here)
└── src/
├── core/
│ ├── brain.py # Central orchestrator
│ ├── config.py # BrainConfig dataclass + config.json I/O
│ ├── events.py # EventManager (pub/sub, brain activity log)
│ └── resources.py # Avatar resource loader
├── interfaces/
│ └── base_interfaces.py # Abstract contracts: LLM, TTS, STT, OBS
├── modules/
│ ├── llm/ # LLM providers (Gemini, OpenAI, Groq, GLM)
│ ├── tts/ # TTS engines (EdgeTTS, Kokoro, Orpheus)
│ ├── STT/ # STT (Groq/Whisper)
│ ├── obs/ # OBS WebSocket controller
│ └── skills/ # Plugin skill system
│ ├── base_skill.py
│ ├── skill_manager.py
│ ├── memory/ # RAG memory + ChromaDB
│ ├── discord/ # Discord voice skill + Node.js bot
│ ├── minecraft/ # Minecraft autonomous agent
│ └── implementations/ # Monologue + misc skills
├── utils/
│ ├── history_manager.py # Conversation session persistence
│ ├── llm_utils.py # JSON response parsing
│ └── text_utils.py # Text formatting utilities
└── web/
├── app.py # FastAPI REST API
├── server.py # Uvicorn launcher
└── frontend/ # React + Vite + Tailwind dashboard
Quick Start
1. Prerequisites
- Python 3.10+
- Node.js 18+ (for the Discord bot)
- OBS Studio with WebSocket plugin enabled (Tools → WebSocket Server Settings)
- A virtual audio cable such as VB-Audio Cable (optional but recommended)
2. Install Python dependencies
pip install -r requirements.txt
3. Configure
Copy .env.example to .env (or set environment variables directly):
OPENAI_API_KEY=sk-...
GEMINI_API_KEY=AIzaSy...
GROQ_API_KEY=gsk_...
DISCORD_TOKEN=...
Review config.json to set your OBS source names, audio device ID, TTS voice, and which skills are enabled.
4. Run
CLI mode (terminal interactive):
python main.py
Web Dashboard mode (FastAPI + React UI):
python main.py --web
Override provider at launch:
python main.py --llm-provider gemini --tts-provider kokoro --web
Modules
The engine is built around three types of components, each defined by an abstract interface in src/interfaces/base_interfaces.py. Any provider can be swapped without touching the core.
| Component | Interface | Implementations |
|---|---|---|
| LLM | LLMInterface | Gemini, OpenAI, Groq, GLM-4.7 |
| TTS | TTSInterface | EdgeTTS, Kokoro (local), Orpheus |
| STT | STTInterface | Groq (Whisper large-v3-turbo) |
| OBS | OBSInterface | OBS WebSocket (obs-websocket-py) |
LLM Modules → · TTS Modules → · STT → · OBS →
Skills — Plugin System
Skills are autonomous background capabilities managed by the SkillManager. Each extends BaseSkill and can be enabled/disabled at runtime (including hot-toggle from the web UI).
| Skill | Description |
|---|---|
| Memory | RAG system: converts sessions into diary entries, stores in ChromaDB, injects relevant context into every prompt |
| Discord | Launches a Node.js Discord bot; listens in voice channels, transcribes speech, sends audio back live |
| Minecraft | Connects via WebSocket to a Minecraft mod; an LLM agent autonomously performs actions using tool-calling |
| Monologue | When the audience is silent, Bea starts unprompted storytelling — episodically, chunk by chunk |

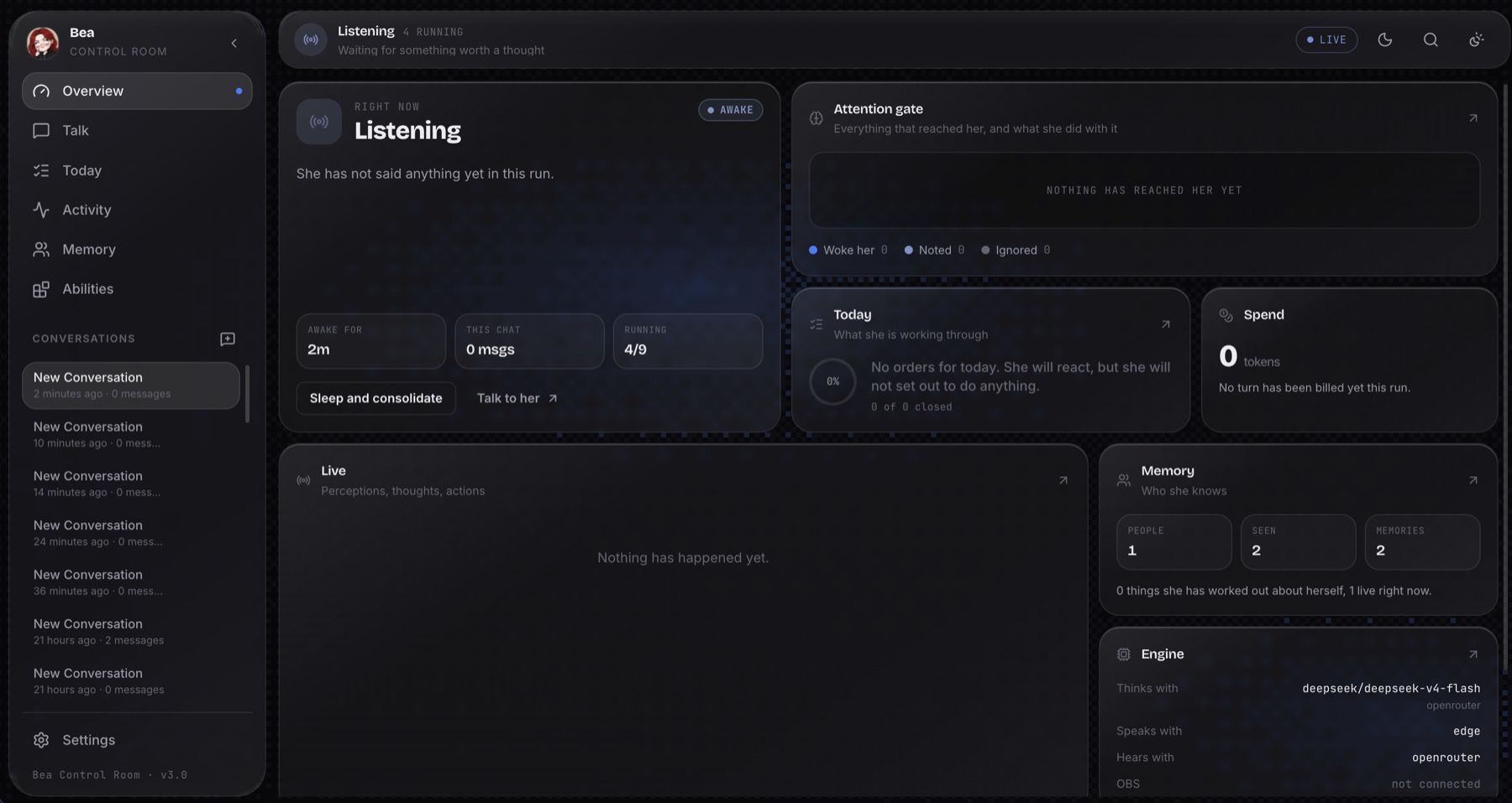

Web Dashboard
The --web flag starts a FastAPI backend (port 8000) and serves a React + Tailwind frontend.
Pages:
- Chat — text chat with Bea, session management
- Brain Activity — real-time event feed (inputs, outputs, skill events, thoughts)
- Skills — toggle skills on/off at runtime
- Config — edit every setting live with hot reload
Full Documentation
| Document | Contents |
|---|---|
| Architecture | System design, data flow, event system |
| Setup & Install | Installation, OBS setup, audio routing |
| Configuration | All config fields, CLI args, .env vars |
| LLM Modules | Providers, response format, adding new LLMs |
| TTS Modules | EdgeTTS, Kokoro, Orpheus |
| STT Module | Groq Whisper transcription |
| OBS Module | Avatar control, text animation |
| Skills Overview | BaseSkill API, SkillManager lifecycle |
| Memory Skill |
Extending ProjectBEA
The modular design makes adding new capabilities straightforward:
- New LLM provider → implement
LLMInterface, register inmain.py - New TTS engine → implement
TTSInterface, add to CLI choices - New Skill → extend
BaseSkill, register inSkillManager
See Skills Overview for the full plugin API.
About
Built by Emanuele Faraci, 19-year-old Computer Science student from Italy.
This project started as a way to learn Python properly, specifically async programming, API integrations, and modular system design, while building something actually fun. It grew from a simple TTS + OBS script into a full VTuber engine with skills, memory, and a web dashboard.
just a side project built for fun and learning.
Portfolio: emanuelefaraci.com
License
This project is open-source. See LICENSE for details.
